Retrieve database from mysql and displaying using dynamic table in android

https://androidprogramz.blogspot.com/2012/07/retrieve-database-from-mysql-and.html





Click here to download this program


I Installed WAMP server on my local machine for excuting PHP programs.

I have programmed in windows 7.

If You need WAMP server, Click here to download.

Before run this program, start wampserver

programs --> wampserver --> start wampserver

see right side below of taskbar WAMPSERVER -server offline icon present.









This is the wampserver icon







 Left click icon --> start all services













package name: selva.select

project name: Dbselect

version :  1.5 ( support 1.5 and above versions)




main.xml



<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

    <Button
        android:id="@+id/button1"
        android:layout_below="@+id/e1"
        android:layout_width="276dp"
        android:layout_height="wrap_content"
        android:text="Button" />


 <ScrollView
         android:layout_below="@+id/button1"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"
        android:focusableInTouchMode="true"
        android:focusable="true" >

   <HorizontalScrollView
         android:layout_width="fill_parent"
         android:layout_height="fill_parent"
         android:focusableInTouchMode="true"
          android:focusable="true">
    <TableLayout

    android:id="@+id/table"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:focusableInTouchMode="true"
    android:focusable="true">


</TableLayout>

    </HorizontalScrollView>

   </ScrollView>

</RelativeLayout>

AndroidManifest.xml



<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="selva.select"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk android:minSdkVersion="3" />
      <uses-permission android:name="android.permission.INTERNET"/>

    <application
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name" >
        <activity
            android:label="@string/app_name"
            android:name=".DbselectActivity" >
            <intent-filter >
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>




DbselectActivity.java




import java.io.BufferedReader;
import java.io.InputStream;
import java.io.InputStreamReader;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.client.HttpClient;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.impl.client.DefaultHttpClient;
import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;
import android.app.Activity;
import android.graphics.Color;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.TableLayout;
import android.widget.TableRow;
import android.widget.TextView;
import android.widget.Toast;
import android.widget.TableRow.LayoutParams;

public class DbselectActivity extends Activity
{


     public void onCreate(Bundle savedInstanceState)

     {
            super.onCreate(savedInstanceState);
            setContentView(R.layout.main);

            Button button = (Button) findViewById(R.id.button1);


            button.setOnClickListener(new View.OnClickListener()
            {
            public void onClick(View view)
              {
                 String result = null;
                InputStream is = null;

                try{
                        HttpClient httpclient = new DefaultHttpClient();
                        HttpPost httppost = new HttpPost("http://10.0.2.2/selectall.php");
                        HttpResponse response = httpclient.execute(httppost);
                        HttpEntity entity = response.getEntity();
                        is = entity.getContent();

                        Log.e("log_tag", "connection success ");
                     //   Toast.makeText(getApplicationContext(), "pass", Toast.LENGTH_SHORT).show();
                }
                catch(Exception e)
                {
                        Log.e("log_tag", "Error in http connection "+e.toString());
                        Toast.makeText(getApplicationContext(), "Connection fail", Toast.LENGTH_SHORT).show();

                }
                //convert response to string
                try
                {
                        BufferedReader reader = new BufferedReader(new InputStreamReader(is,"iso-8859-1"),8);
                        StringBuilder sb = new StringBuilder();
                        String line = null;
                        while ((line = reader.readLine()) != null)
                        {
                                sb.append(line + "\n");
                              //  Toast.makeText(getApplicationContext(), "Input Reading pass", Toast.LENGTH_SHORT).show();
                        }
                        is.close();

                        result=sb.toString();
                }
                catch(Exception e)
                {
                       Log.e("log_tag", "Error converting result "+e.toString());
                    Toast.makeText(getApplicationContext(), " Input reading fail", Toast.LENGTH_SHORT).show();

                }

                //parse json data
                try
                {

                JSONArray jArray = new JSONArray(result);


                String re=jArray.getString(jArray.length()-1);


                TableLayout tv=(TableLayout) findViewById(R.id.table);
                tv.removeAllViewsInLayout();




                   int flag=1;

                for(int i=-1;i<jArray.length()-1;i++)

                        {




                                TableRow tr=new TableRow(DbselectActivity.this);

                                tr.setLayoutParams(new LayoutParams(
                                           LayoutParams.FILL_PARENT,
                                           LayoutParams.WRAP_CONTENT));




                                if(flag==1)
                                {

                                    TextView b6=new TextView(DbselectActivity.this);
                                     b6.setText("ID");
                                     b6.setTextColor(Color.BLUE);
                                     b6.setTextSize(15);
                                     tr.addView(b6);


                                    TextView b19=new TextView(DbselectActivity.this);
                                     b19.setPadding(10, 0, 0, 0);
                                     b19.setTextSize(15);
                                     b19.setText("Name");
                                     b19.setTextColor(Color.BLUE);
                                     tr.addView(b19);

                                   TextView b29=new TextView(DbselectActivity.this);
                                 b29.setPadding(10, 0, 0, 0);
                                     b29.setText("no");
                                     b29.setTextColor(Color.BLUE);
                                     b29.setTextSize(15);
                                     tr.addView(b29);


                                 tv.addView(tr);

                                     final View vline = new View(DbselectActivity.this);
                                          vline.setLayoutParams(new TableRow.LayoutParams(TableRow.LayoutParams.FILL_PARENT, 2));
                                          vline.setBackgroundColor(Color.BLUE);



                                tv.addView(vline);
                                flag=0;


                                }

                                else
                                {



                                    JSONObject json_data = jArray.getJSONObject(i);

                                    Log.i("log_tag","id: "+json_data.getInt("f1")+
                                              ", Username: "+json_data.getString("f2")+
                                              ", No: "+json_data.getInt("f3"));




                            TextView b=new TextView(DbselectActivity.this);
                                String stime=String.valueOf(json_data.getInt("f1"));
                                  b.setText(stime);
                                b.setTextColor(Color.RED);
                                b.setTextSize(15);
                                tr.addView(b);


                               TextView b1=new TextView(DbselectActivity.this);
                                b1.setPadding(10, 0, 0, 0);
                                b1.setTextSize(15);
                                String stime1=json_data.getString("f2");
                                 b1.setText(stime1);
                                b1.setTextColor(Color.WHITE);
                                tr.addView(b1);

                              TextView b2=new TextView(DbselectActivity.this);
                             b2.setPadding(10, 0, 0, 0);
                                String stime2=String.valueOf(json_data.getInt("f3"));
                                b2.setText(stime2);
                                b2.setTextColor(Color.RED);
                                b2.setTextSize(15);
                                tr.addView(b2);

                                  tv.addView(tr);


                        final View vline1 = new View(DbselectActivity.this);
                      vline1.setLayoutParams(new TableRow.LayoutParams(TableRow.LayoutParams.FILL_PARENT, 1));
                      vline1.setBackgroundColor(Color.WHITE);
                      tv.addView(vline1);


                                }

                       }



                }
                catch(JSONException e)
                {
                        Log.e("log_tag", "Error parsing data "+e.toString());
                        Toast.makeText(getApplicationContext(), "JsonArray fail", Toast.LENGTH_SHORT).show();
                }




           }
           });




     }


}




database name: ex1

Table name: t1

Fields Name: f1(bigint)  ,f2(text)  ,f3(bigint)



 selectall.php



    <?php

         $con = mysql_connect("localhost","root","");
         if (!$con)
               {
                         die('Could not connect: ' . mysql_error());
                }

           mysql_select_db("ex1", $con);


           $i=mysql_query("select * from t1",$con);

           $num_rows = mysql_num_rows($i);


           $check='';
          while($row = mysql_fetch_array($i))
            {

                  $r[]=$row;
                  $check=$row['f1']             }

         if($check==NULL)
           {
                      $r[$num_rows]="Record is not available";
                      print(json_encode($r));

             }
            else
             {
                $r[$num_rows]="success";
                 print(json_encode($r));

              }

 mysql_close($con);

    ?>

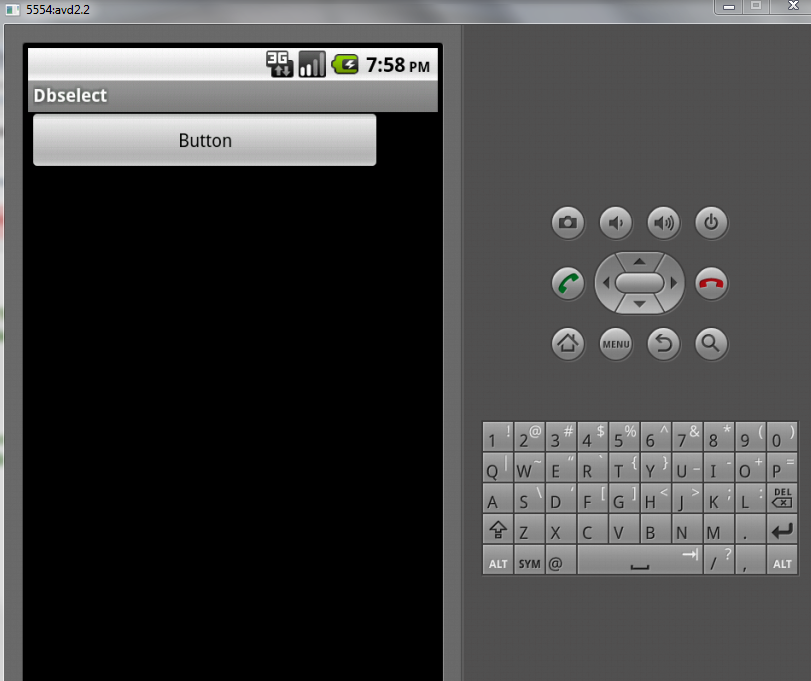

OUTPUT:





Click button






Click here to download this program.
